La Marzocco Β· handmade in Florence
Modbar Steam

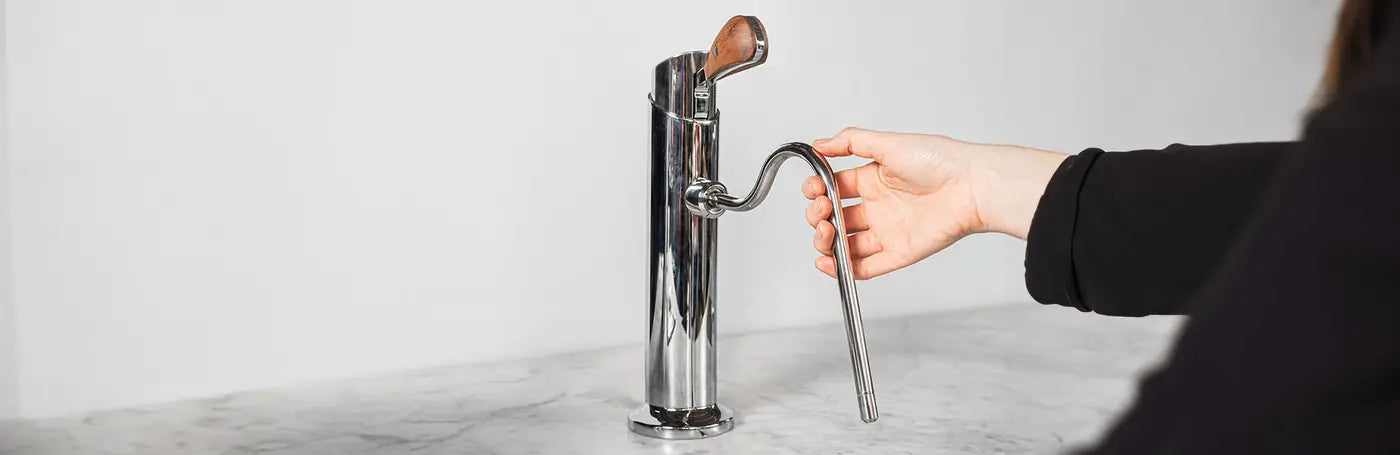

Modbar Steam: Steam tap and counter installation
Official photographs show example finishes and group counts; the selected specification governs the quotation.
Configure your machine
- Machine
- Required components
- Selected options
Configuration total
Sold out
Request a quote Choose additional optionsView or copy your selection
Discuss on WhatsAppTechnical specifications
Undercounter module + 1 steam tap
| Configuration | Steam tap plus undercounter module |
|---|---|
| Tap dimensions W Γ D Γ H (mm) | 90 Γ 270 Γ 320 |
| Module dimensions W Γ D Γ H (mm) | 430 Γ 380 Γ 220 |
| Tap / module weight (kg) | 3.5 / 18 |
| Steam boiler capacity (L) | 4.6 |
| Electrical supply | 208β240 V, 14.4 A CE / 13 A ETL, 3,306 W CE / 2,704 W ETL, 50/60 Hz, single phase |
Features

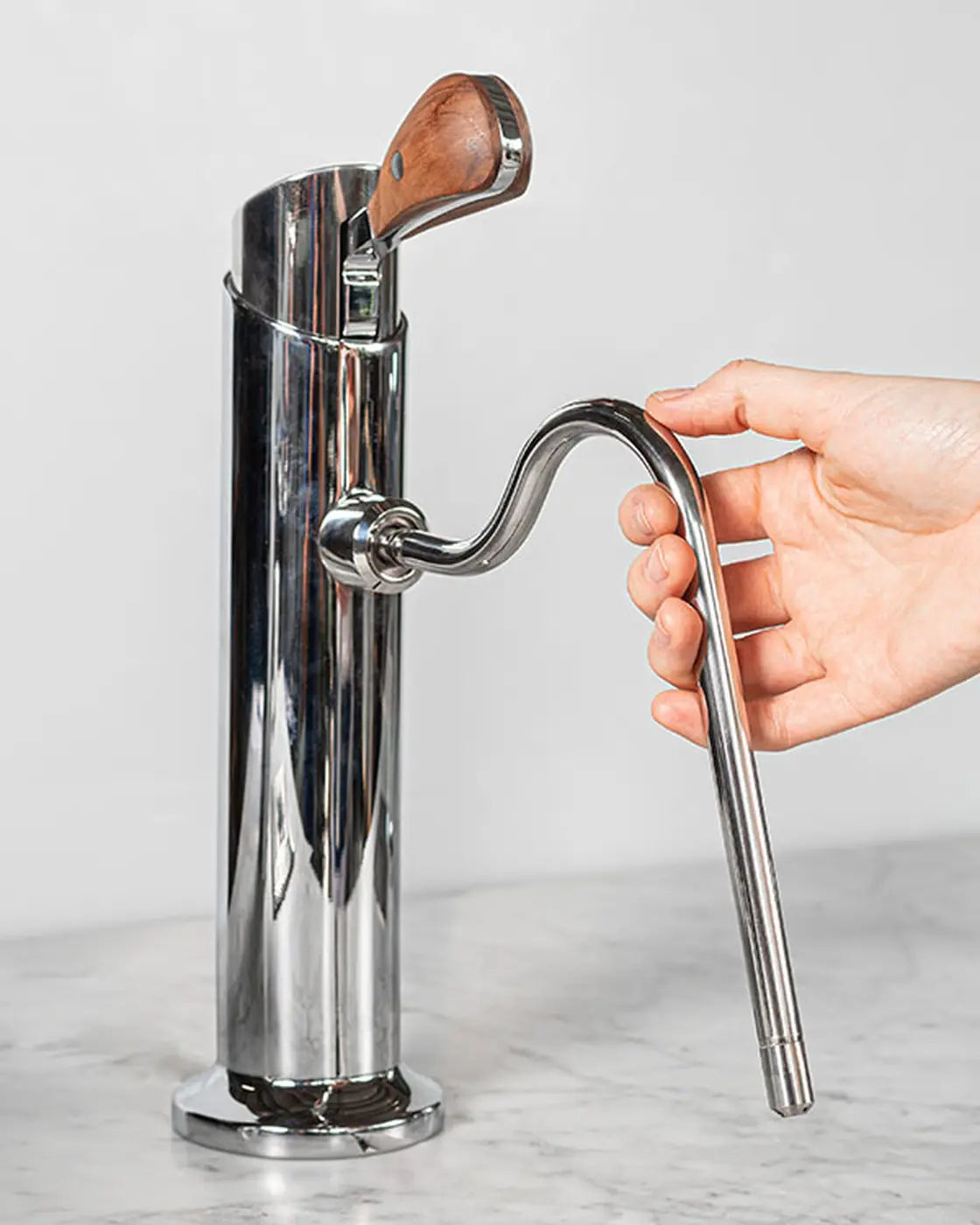

- Double-wall Pro Touch steam wand

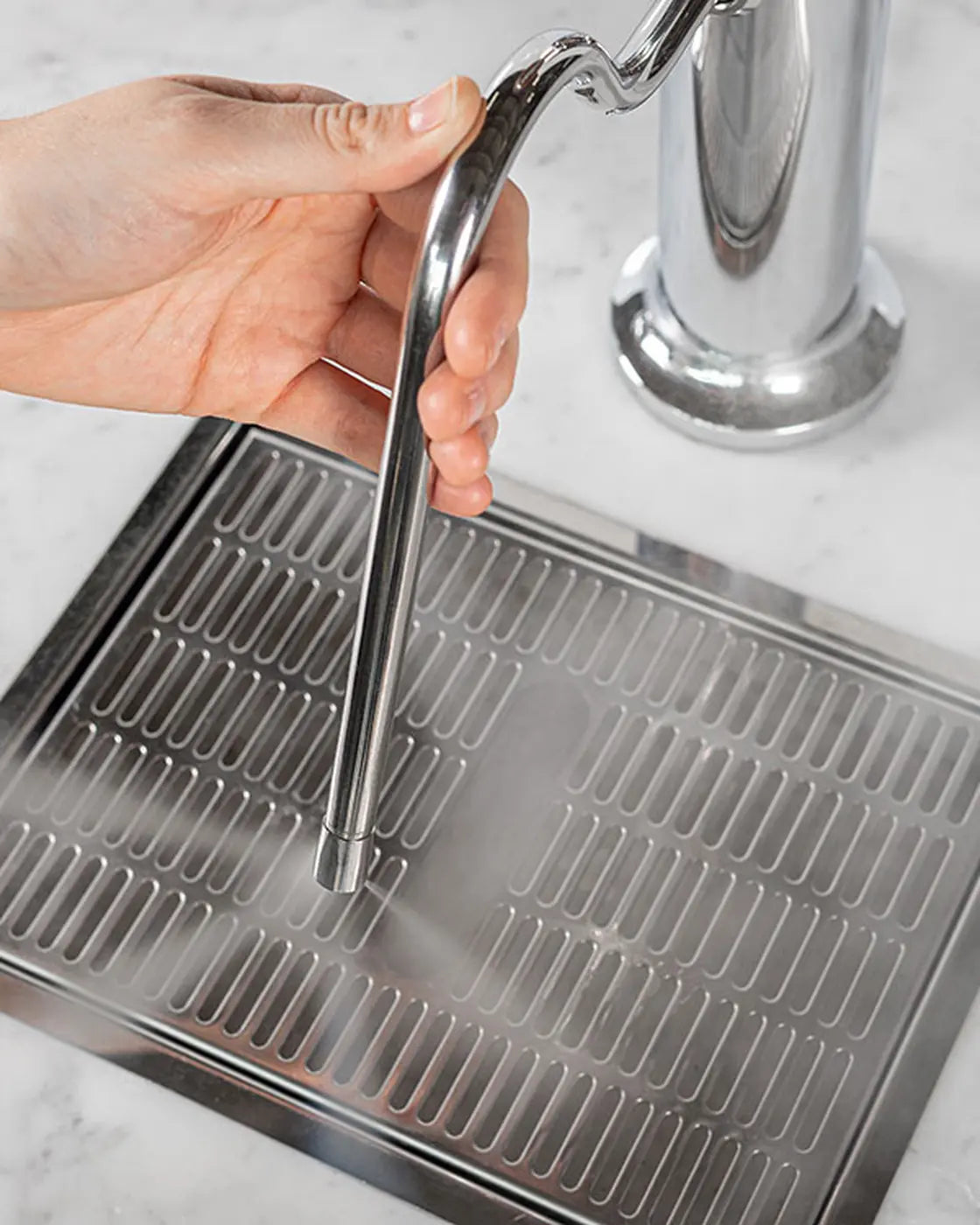

- Dry steam performance
- Minimal purge requirement
- Refresh button for water recirculation

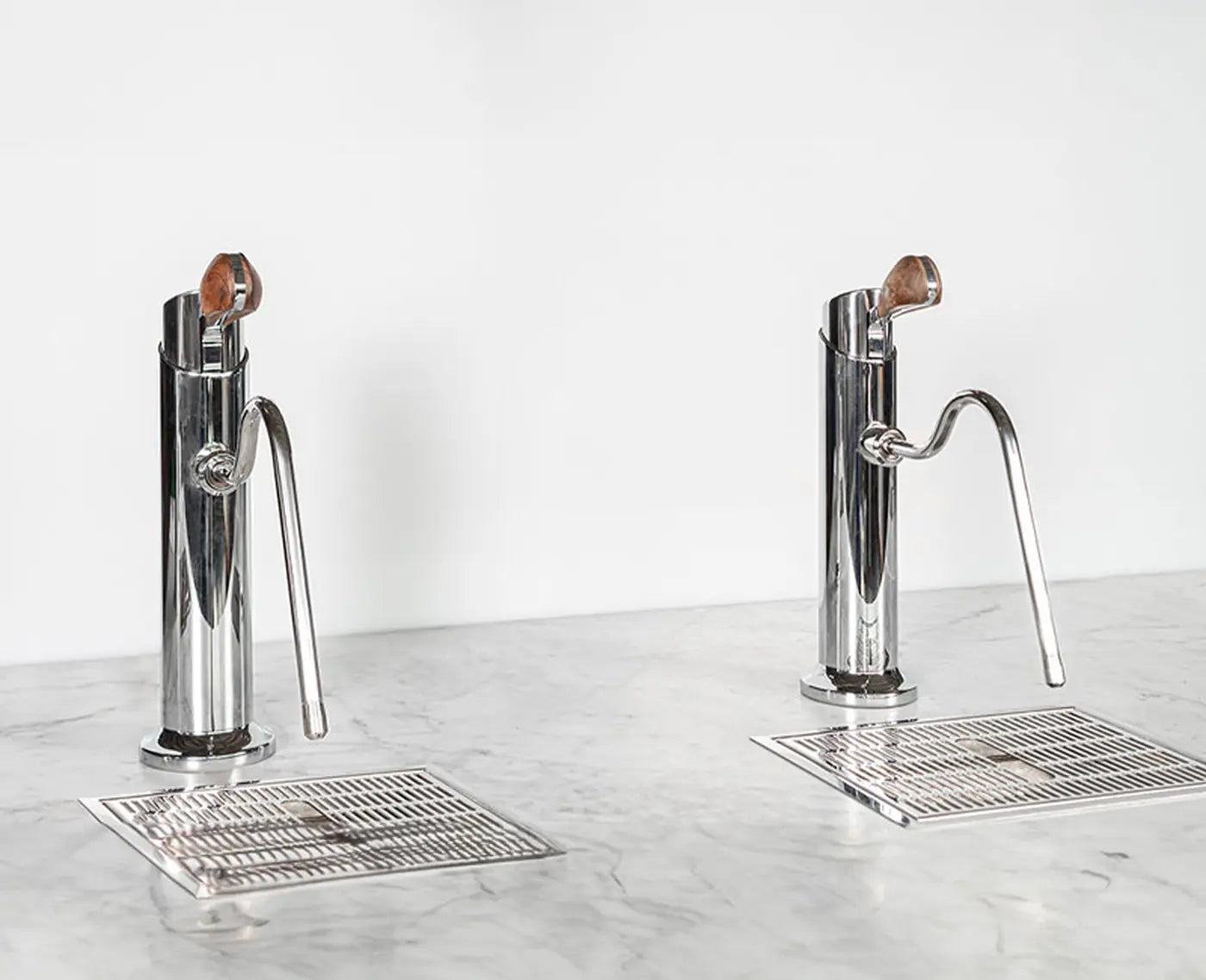

- Up to two taps per module
- Right-side service connections
Installation, water treatment and electrical requirements must be checked for the exact machine ordered.
All configurations & prices
| Configuration | Base price | Included / required additions | Configuration total | Selection |
|---|---|---|---|---|
| Undercounter module + 1 steam tap | AED 13,500 | Steam tap + AED 7,500 | AED 21,000 |
All amounts are AED excluding VAT. Required additions are included in the configuration total; optional extras are additional.
Before you order
- The complete-system total combines the separately listed AED 13,500 undercounter module and AED 7,500 steam tap.
- Confirm whether custom colour pricing applies to every tap in the selected configuration.
Specifications: https://modbar.com/steam/. Prices: Supplied Modbar.pdf (V23), page 1.
